AutoPot 1Pot System 9 x 8,5L Pots

Power-free AutoPot irrigation for nine individually supplied plants

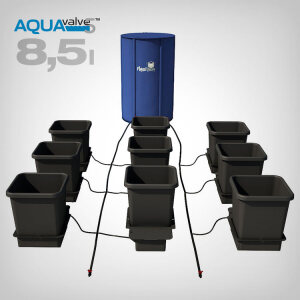

The AutoPot 1Pot System 9 x 8.5L Pots provides automatic water and nutrient delivery for up to nine plants. Each 8.5-litre pot sits in its own tray and is controlled by an individual AQUAvalve5. The system is gravity-fed from the supplied 100-litre FlexiTank, so the irrigation itself requires no pump, electricity or timer. Suitable for indoor growing, greenhouses and outdoor cultivation, the separate modules can be positioned to suit the available space and the spacing requirements of your plants.

Plant-controlled irrigation with AQUAvalve5

Each AQUAvalve5 regulates the supply automatically. The valve allows water or nutrient solution into the tray to a depth of approximately 20 mm before closing. It only opens again after the plants have used the available supply. Its 5 mm inlet provides a faster flow and reduces the risk of blockages compared with earlier valve generations. This allows irrigation to respond to plant uptake rather than relying on repeatedly programmed watering intervals.

Nine individual growing stations with a flexible layout

Each pot has its own tray, allowing the nine modules to be spaced according to plant size and the layout of your growing area. A 16 mm main supply line distributes water through the system, while 9 mm pipe feeds the individual AQUAvalve5 units. Further sizes, modules and compatible parts are available within the AutoPot 1Pot irrigation system range. The system can also be combined with AutoPot easy2grow components.

8.5-litre pots with optional root-zone aeration

AutoPot specifies the pots for growing media based on soil or coco mixed with perlite or clay pebbles. For a defined drainage base, each pot can be fitted with a compatible AutoPot AirBase for 1Pot. The square AirBase fits the 8.5-litre pots and can also accommodate an AirDome. For active aeration around the root zone, the system can be complemented with the AutoPot AirDome Kit with Air Pump.

Technical details:

• Product type: automatic gravity-fed irrigation system
• Number of growing stations: 9
• Pot volume: 8.5 litres per pot
• Total pot volume: 76.5 litres
• Water reservoir: 100-litre FlexiTank
• Valves: 9 × AQUAvalve5
• AQUAvalve5 inlet: 5 mm
• Operation: gravity-fed without an irrigation pump, electricity or timer
• Pipe diameters: 16 mm and 9 mm
• Suitable growing media: soil or coco mixed with perlite or clay pebbles
• Expandability: compatible with additional AutoPot modules and easy2grow systems
• Contents: 1 × 100-litre FlexiTank, 9 × AQUAvalve5, 1 × 16 mm Click-Fit tank adaptor with filter, 1 × 16 mm tee connector, 3 × 16/9 mm cross connectors, 3 × 16/9 mm tee connectors, 9 × 1Pot trays with covers, 9 × 8.5-litre pots, 2 × 16 mm taps, 6 m of 16 mm pipe, 4.5 m of 9 mm pipe, 9 × Marix Discs, 9 × Root Control Discs
