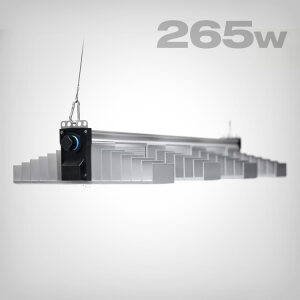

SANlight EVO 4-80 1.5, 265W

SANlight EVO 4-80 1.5, 265W – high-intensity lighting for 80 × 80 cm

The SANlight EVO 4-80 1.5 is an LED grow light designed for indoor growing areas 80 cm deep. Drawing 265 W, it provides high light levels across an 80 × 80 cm footprint. It suits experienced growers as well as beginners who wish to tailor their lighting to plant requirements with an optional dimmer.

Adjust the output to suit your plants

A photon flux of 725 µmol/s gives this fixture substantial light output. Young plants in particular can be sensitive to its full intensity. Adding a separately available SANlight EVO magnetic dimmer or SANlight EVO Bluetooth dimmer allows you to reduce both light output and electricity consumption. This helps you accommodate different stages of development rather than running the light at full power throughout the grow.

Broadband spectrum with light-directing secondary optics

The broadband spectrum covers 400–780 nm and includes far-red light. Asymmetric secondary optics direct the light towards the growing area and support even distribution while shielding the LEDs from environmental influences. The optics can also be cleaned. Disconnect the fixture from the mains first and use a dry cloth free from dust and grease. Do not use cleaning agents or damp cloths.

Passive cooling without a built-in fan

Heat is dissipated passively, so the fixture does not require its own cooling fan. This eliminates fan noise from the light itself. Its IP65 rating indicates a dust-tight construction with protection against water jets. The EVO 4-80 1.5 is intended for indoor plant lighting. Neither the heat sink nor the housing may be covered during operation.

Add the power cable and hanging accessories you need

A mains cable, dimmer and hanging accessories are not included. The angled SANlight power cable for the EVO-Series is one suitable option for connecting the fixture to the mains. You will also need hanging accessories with sufficient load capacity for the 4.5 kg light. This lets you select the components required for your particular installation.

Technical details:

• Product type: LED grow light for indoor growing areas
• Model: SANlight EVO 4-80 1.5
• Manufacturer item number: AA1113
• Power consumption: 265 W
• Growing area for high-intensity lighting: 80 × 80 cm
• Photon flux within 400–780 nm: 725 µmol/s
• Emission range: 400–780 nm, including far-red light
• Module efficacy: Over 3 µmol/J; applies to the LED modules, not the complete fixture
• Optics: Asymmetric secondary optics
• Beam angle: 90–112°
• Cooling: Passive, without a built-in fan
• Dimming: Optional with a compatible SANlight magnetic or Bluetooth dimmer
• Dimensions (L × W × H): 643 × 291 × 116 mm
• Weight: 4.5 kg
• Protection rating: IP65
• Light output maintenance: LM90 over 90,000 hours, referring to 90% of the original light output
• Scope of delivery: 1 × SANlight EVO 4-80 1.5; mains cable, dimmer and hanging accessories not included
