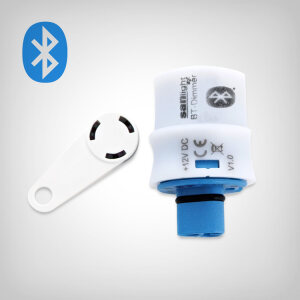

SANlight EVO Bluetooth Dimmer

Precise Bluetooth Mesh light control for your SANlight EVO setup

The SANlight EVO Bluetooth Dimmer lets you control the output of compatible SANlight EVO grow lights through the SANlight Mesh app. Light output can be adjusted from 20 to 100% in 1% increments, while EVO-Series lights can also be switched off using the Dimm-to-Off function. This allows you to adapt light intensity accurately to different plant stages and growing conditions.

Control individual lights or complete groups

The dimmer uses Bluetooth Mesh technology. Within the SANlight Mesh app, you can control individual lights or combine several units into custom groups and adjust them together. According to SANlight, one network can accommodate up to 3,200 lights. The app is available for Android and iOS. Each light or driver you want to control requires its own Bluetooth dimmer. Compatible fixtures can be found in the SANlight EVO range.

Stealth Mode and IP65 protection

Once the system has been configured, Stealth Mode can be used to prevent the dimmer from appearing to ordinary Bluetooth devices. The supplied magnetic key can be used to activate or deactivate this mode and to reset the dimmer when required. With an IP65 rating, the housing is designed for the conditions commonly found in indoor growing environments. SANlight also provides software updates as the system is developed further.

Easy integration into an EVO lighting system

The dimmer connects directly to the compatible SANlight light and receives its power from the fixture. For a complete lighting installation, Growmart also offers compatible SANlight power cables. If app-based control is not required, the SANlight M-Dimm magnetic dimmer provides a simpler alternative.

Technical details:

• Product type: Bluetooth Mesh dimmer for SANlight grow lighting
• Manufacturer item number: AB0006
• Control: SANlight Mesh app via Bluetooth Mesh
• App compatibility: Android and iOS
• Dimming range: 20–100% in 1% increments
• Switch-off function: Dimm-to-Off with the EVO-Series
• Network size: up to 3,200 lights
• Group control: individual lights and groups of lights
• Protection rating: IP65
• Compatibility: SANlight EVO-Series and STIXX-Series, not suitable for the Q-Series
• Required quantity: one Bluetooth dimmer per light or driver
• Scope of delivery: 1 × SANlight EVO Bluetooth Dimmer, 1 × magnetic key
