CarbonActive Homeline, 200-1200m³/h, ø 125-200mm

CarbonActive Homeline, 200-1200m³/h, ø 125-200mm

Effective odor binding with activated carbon: CarbonActive Homeline filters offer you particularly effective neutralization of unpleasant grow odors. They use tiny, activated carbon particles with a diameter of 0.4 to 0.8 millimeters: this small size increases the odor-neutralizing surface area by a factor of 10,000, thereby enhancing the effectiveness of the filter performance. Thanks to this special design, CarbonActive filters are significantly smaller, lighter, and more efficient than conventional activated carbon filters. We have 9 different models of the CarbonActive Homeline AKF to choose from – so you can find the right filter for your grow.

Lower pressure loss thanks to innovative design

Thanks to their special design, CarbonActive filters guarantee lower pressure loss. This means that the air flow rate in your system is higher, and the performance of your fan is not impaired.

Our tip: The cubic meter capacity of the filter should be 20% higher than the capacity of the fan. This reduces pressure loss by almost 50% and guarantees optimal filter performance.

How to extend the service life of the CarbonActive filter

Dirt particles in the air clog the pores of the activated carbon and thus impair the performance of the filter. You should therefore always use a suitable pre-filter fleece and replace it regularly to extend the service life of the CarbonActive Homeline AKF. You can find our range of pre-filter fleeces here.

Important: Microparticles, such as those produced by smoking, can also pass through the pre-filter unhindered. Therefore, avoid smoking near the filter at all costs. When cleaning, you should disconnect the filter from the ventilation system so that harmful micro-dust is not sucked in and damages the fan.

Excessive humidity also impairs the absorption capacity of the activated carbon. Therefore, make sure that this value never exceeds 65%. If you use an ultrasonic water atomizer for air humidification, the lime contained in the water is released. It cannot be retained by the pre-filter and then settles on the activated carbon. Therefore, only use lime-free water for air humidification.

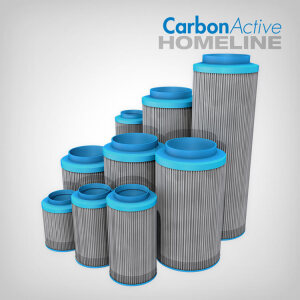

Overview of all CarbonActive Homeline activated carbon filters offered

• CarbonActive Homeline, 200Z m3/h, ø 125mm
• CarbonActive Homeline, 300Z m3/h, ø 125mm
• CarbonActive Homeline, 400Z m3/h, ø 125mm
• CarbonActive Homeline, 500ZL m3/h, ø 125mm
• CarbonActive Homeline, 500ZW m3/h, ø 200mm
• CarbonActive Homeline, 650Z m3/h, ø 200mm
• CarbonActive Homeline, 800Z m3/h, ø 200mm
• CarbonActive Homeline, 1000ZL m3/h, ø 200mm
• CarbonActive Homeline, 1200Z m3/h, ø 200mm
