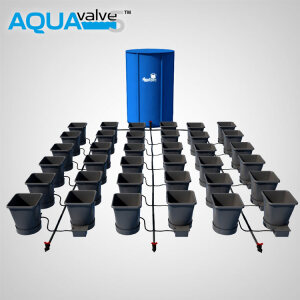

AutoPot 1Pot XL System 36 x 25L for gravity-fed irrigation of larger crops
The AutoPot 1Pot XL System 36 x 25L is a large modular irrigation system designed to supply up to 36 plants. Each growing position consists of its own 25-litre pot, tray with lid and AQUAvalve5. This allows the individual plants to be positioned separately while drawing water or a suitable nutrient solution from a shared 400-litre FlexiTank. The system operates entirely by gravity, so no electric pump or irrigation timer is required.
Individual irrigation with AQUAvalve5
Each of the 36 trays is equipped with its own AQUAvalve5. The valve controls the flow into the individual tray, providing automatic irrigation directly around the root zone. Once the available solution has been taken up, the valve can refill the tray. This removes the need to water every pot manually and makes a larger number of plants easier to manage consistently.
25-litre pots with independently positioned modules
The 25-litre pots provide substantial growing-media capacity for plants that require more root space. As every pot sits in a separate tray, the modules can be arranged to suit the available growing area rather than being fixed together. Other configurations can be found among the AutoPot 1Pot XL systems. Additional growing positions can also be added using an AutoPot 1Pot XL extension kit.
400-litre FlexiTank and central pipe network
The system includes a 400-litre FlexiTank for supplying all 36 growing positions. A click-fit adapter with filter connects the tank to the 16 mm main pipework. From there, 16-to-9 mm cross connectors and 9 mm pipe distribute the supply to the individual AQUAvalve5 units. Three 16 mm inline taps allow sections of the main pipework to be isolated. XL Root Control Discs are also included for the growing modules to help control root growth around the tray area.
Technical details:
- Product type: Modular gravity-fed irrigation system
- Number of growing positions: 36
- Pot capacity: 25 litres per pot
- Water tank: 400 litre FlexiTank
- Irrigation valves: 36 × AQUAvalve5
- Pipe system: 16 mm main pipe and 9 mm supply pipes
- Pipe lengths: 15 m of 16 mm pipe and 18 m of 9 mm pipe
- Operation: Gravity-fed without electricity, pump or irrigation timer
- GTIN: 5060151871855
- Supplied with: 1 × 400-litre FlexiTank, 1 × 16 mm click-fit adapter with filter, 1 × 16 mm cross connector, 18 × 16-to-9 mm cross connectors, 36 × 1Pot XL trays with lids, 36 × 25-litre pots, 3 × 16 mm inline taps, 36 × AQUAvalve5, 15 m of 16 mm pipe, 18 m of 9 mm pipe and 36 × XL Root Control Discs
AutoPot Growers Guide
AutoPot 36Pot XL Assembly Instructions
