Description

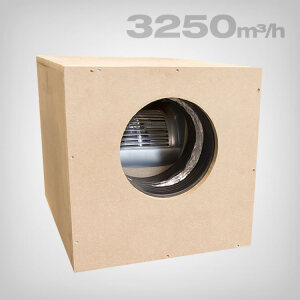

Quiet, Low-Vibration Exhaust for Indoor Spaces: Torin MDF Softbox
The Torin MDF Softbox combines a powerful radial fan with a sound-insulated MDF enclosure. Inside the box, the fan is suspended on rubber bands, which significantly reduces vibrations and the transfer of structure-borne noise.
Depending on the selected version, the Softbox is an exhaust solution for medium to large indoor projects where high airflow is required with the lowest possible noise level.
Technical Specifications by Version
- 1,500 m³/h: 147 W, intake 250 mm, exhaust 250 mm, 47 x 55 x 45 cm, 26 kg
- 2,500 m³/h: 245 W, intake 250 mm, exhaust 250 mm, 60 x 77 x 50 cm, 30 kg
- 3,250 m³/h: 373 W, intake 250 mm, exhaust 315 mm, 60 x 77 x 50 cm, 35 kg
- 4,250 m³/h: 550 W, intake 2 x 250 mm, exhaust 315 mm, 66 x 77 x 55 cm, 40 kg
- 5,000 m³/h: 750 W, intake 2 x 250 mm, exhaust 315 mm, 77 x 82 x 60 cm, 55 kg
- 6,000 m³/h: 1,100 W, intake 2 x 250 mm, exhaust 315 mm, 77 x 82 x 60 cm, 57 kg
- 7,000 m³/h: 1,500 W, intake 3 x 250 mm, exhaust 400 mm, 77 x 82 x 60 cm, 65 kg
| Connection: | 250mm |
