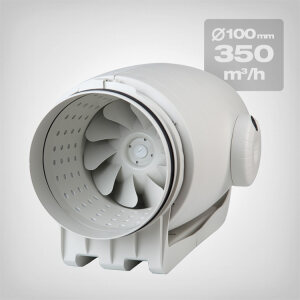

The S&P tube fan TD-300/100 Ecowatt: High air throughput with low power consumption and quiet operation
- With non-combustible sound insulation lining
- Lightweight polypropylene housing
- Flat design - perfect for use in grow boxes
- EC motor, volume flow up to 350 m³/h
- Speed adjustable via signal input 0-10 V or internal potentiometer
- Motor can be easily removed for maintenance and cleaning
The TD-300/100 Ecowatt is equipped with a modern and energy-saving EC motor, is only around 25 cm high, works quietly and is therefore perfect for your indoor grows.
Especially quiet thanks to internal sound insulation, EC motor and semi-radial impellers made of ABS plastic.
The ingenious design of the fans from Soler & Palau ensures particularly quiet operation. The impellers made of ABS plastic are statically and dynamically balanced and the high-quality EC motor with sealed ball bearings is designed for continuous operation. The special sound insulation lining is non-flammable (A2) and absorbs most of the noise generated. At a volume flow of 180 m³/h, the TD-300/100 Ecowatt emits only 24 dB(A). You can of course reduce this value even further with a sound-insulated exhaust air hose. The fans from S&P offer outstandingly quiet running. You don't have to worry about the humming and vibrations that often occur with standard fans. The already very low-vibration EC motor is additionally fitted with vibration-damping seals and the aerodynamically optimised airflow channel reduces the generation of noise. At just 57.5 cm long and only 25 cm high, this fan fits well in small grow rooms and grow boxes.
Infinitely variable, easy to clean and maintain
The TD-300/100 Ecowatt tube fan is equipped with an internal potentiometer for infinitely variable speed control. It also has an input for external control signals with 0-10 volts. At full speed, the tube fan has a maximum air flow rate of 350 m³/h and consumes only an economical 19 watts. To service or clean the fan, you can easily remove the motorised impeller unit without dismantling the pipework.
Scope of delivery:
- 1x S&P pipe fan TD-300/100 Ecowatt
Technical details:
- Voltage: 230 V
- Power consumption: max. 19 W
- Weight: 5 kg
- Length: 575 mm
- Height: 252 mm
- Width: 252 mm
- Air flow: 0-350 m³/h
- Sound pressure level: max. 29 dB(A)
- Connecting flange: 100 mm
- Engine: EC
S&P TD silent Ecowatt Instruction Manual
S&P TD silent Ecowatt Data Sheet
| Connection: | 100mm |
