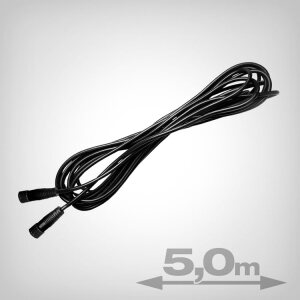

Lumatek Daisy Chain Control Cable, 5 Meter

Lumatek Daisy Chain Control Cable for neatly linking multiple LED fixtures

The Lumatek Daisy Chain Control Cable, 5 Meter allows you to connect multiple controllable Lumatek LED fixtures in a daisy-chain. It carries the control signal from one fixture to the next, making it particularly useful for larger lighting installations where several lamps need to operate as part of the same control system.

Direct connection between Lumatek LED fixtures

The cable is fitted with a self-locking M12 male connector and a matching M12 female connector. The male plug connects to the Signal Out port of one Lumatek LED structure, while the female connector attaches to the Signal In port of the next fixture. An additional Daisy Chain Control Cable is required for each further fixture in the chain. Compatible options can be found among the Lumatek LED grow lights.

5 metre length for flexible installations

With a cable length of 5 m, fixtures can be linked even when they are positioned further apart. The self-locking M12 connections help prevent accidental disconnection and provide a stable control link. The cable has an IP65 protection rating and uses UL 2464 wiring with 3 × 22 AWG conductors.

Designed for centrally controlled lighting systems

In an installation using the Lumatek Digital Panel PLUS 2.0, the Daisy Chain Control Cable links the controllable LED fixtures to one another. The controller itself connects to the first LED using the designated LED controller cable. This arrangement keeps larger Lumatek lighting systems organised while allowing centralised control.

Technical details:

• Product type: Daisy-chain control cable for controllable Lumatek LED fixtures
• Product code: LUMM0015
• Cable length: 5 m
• Connections: Self-locking M12 male and M12 female connectors
• Connection principle: Signal Out to Signal In
• Cable specification: UL 2464, 3 × 22 AWG, 80 °C, 300 V, VW-1
• Protection rating: IP65
• Operating temperature: -20–105 °C
• Storage temperature: -25–105 °C
• Compliance: RoHS
• Contents: 1 × Lumatek Daisy Chain Control Cable, 5 m
