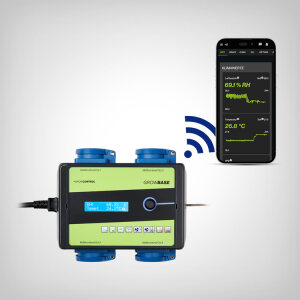

GrowBase WIFI Controller

With this controller, you can control all settings for perfect growing results

Easily control the perfect settings for your grow: With the GrowBase WIFI Controller, you can keep an eye on all values such as temperature, light, CO2, or negative pressure and adjust them at any time for the best growing results. The controller has four sockets for connecting devices and sensors. The functions are set via the menu, which is particularly simple and intuitive to use.

This makes it very easy to keep the temperature and humidity at the right level with the GrowBase WIFI Controller and provide the best conditions for your grow. This tool also keeps the negative pressure at the right level to prevent odors. The controller is suitable for controlling EC and AC fans, making it even more flexible in use. The timer functions — time of day, interval, and event timer — also allow for individual adjustments to the devices.

Convenient control with integrated WiFi

You can connect the GrowBase WIFI Controller to your home WiFi network and then control it via your smartphone, tablet, or PC: the device is equipped with an integrated WiFi module for this purpose. This convenient option allows you to view all measured values in real time and make adjustments as needed. Here, too, the design of the web interface makes it easy to view and regulate everything. Another plus: the graphical display of the measurements, which gives you an even more precise overview.

Connection options

RJ45 sockets

• EC fan(s) for exhaust air
• EC fan(s) for supply air
• Lights with 0-10V/1-10V interface
• External relays/contactors
• Humidity and temperature sensor (included)
• CO₂ sensor
• Negative pressure sensor
• Temperature sensor for heating mat

Sockets

• AC supply air fans
• AC exhaust air fans
• Lights
• Humidifiers
• Dehumidifiers
• Recirculation fans
• Heating mats
• CO₂ valves and CO₂ generators

Technical details

• Dimensions: 190 x 170 x 120 mm (LxWxH)
• Cable length for temperature (T)/humidity (RH) sensor: approx. 5 m
• Power cable length: approx. 2 m
• Power supply: 100-240V ~ 7A 50-60Hz
• Output power "Multifunctional Out 1-4": 600VA (W) @ 230V 310VA (W) @ 120V 2.6A
• Output power "Multifunctional Out 1+2+3+4": 1600VA (W) @ 230V 840VA (W) @ 120V 7A
• Output current 0-10V outputs: max. 20mA
• Protection class: IP42 / Protection class I
• Repeatability RH/T sensor: ± 0.1% RH / ± 0.2 °C
• Absolute sensor accuracy RH/T: ±2%RH/±0.2°C
• Adjustable temperature range: 10-50°C
• Permissible ambient temperature: 10-40°C
• Wireless technology: WiFi 2.4 GHz (IEEE 802.11 b/g/n)

Scope of delivery

• GrowBase WiFi controller
• Humidity and temperature sensor
• Three-hole disc for mounting the sensor
• 1 x power cable
• Quick start guide
• Screws, dowels, and drilling template for wall mounting
