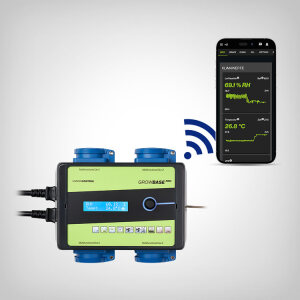

GrowBase Pro WIFI Controller

With this controller, you can control all settings for perfect growing results

All climate factors for successful growing precisely controlled: The GrowBase Pro WIFI Controller allows you to precisely control all important growing settings, such as temperature, light, CO2, or negative pressure. You can connect various devices and sensors to the four sockets on the controller and set many functions. The menu for this is clearly laid out and can be operated intuitively. This makes it very easy to use this clever control center for your grow.

The GrowBase Pro WIFI Controller allows you to keep temperature and humidity at the desired level at all times. This control also keeps the negative pressure at the right level to prevent odors. Another plus: the controller is equally suitable for controlling EC and AC fans, making it even more flexible in use. The timer functions — time of day, interval, and event timer — also allow for individual adjustments to the devices. The fourth socket on the controller is designed specifically for connecting LED lights: it can handle up to 2,300 watts, can be switched off at two poles, and has a start-up current limiter.

Convenient control with integrated WiFi

The GrowBase Pro WiFi Controller is equipped with an integrated WiFi module: This allows you to connect the control unit to your home WiFi network and then control it directly via smartphone, tablet, or PC. This gives you a real-time overview of all measured values and allows you to make adjustments at any time if necessary. Here, too, the design of the web interface makes it easy to keep track of everything and make adjustments. Another advantage is the graphical display of the measurements, which gives you an even more precise overview.

Connection options

RJ45 sockets

• EC fans for exhaust air
• EC fans for supply air
• Lights with 0-10V/1-10V interface
• External relays/contactors
• Humidity and temperature sensor(s) (1x included)
• CO₂ sensor(s)
• Negative pressure sensor(s)
• Leaf temperature sensors
• Temperature sensors for heating mats
• PowerExtender (additional sockets)

Sockets

• AC supply air fans
• AC exhaust air fans
• Lights
• Humidifiers
• Dehumidifiers
• Irrigation pumps
• Recirculation fans
• Electric heaters
• Cooling
• Heating mats
• CO₂ valves and CO₂ generators

Technical details

• Dimensions: 190 x 170 x 120 mm (LxWxH)
• Cable length for temperature (T)/humidity (RH) sensor: approx. 5 m
• Length of power cable: approx. 2 m
• Power supply 1 (for the device and "Multifunctional Out 1-3"): 100-240V ~ 7A 50-60Hz
• Power supply 2 (for "Multifunctional Out 4"): 100-240V ~ 10A 50-60Hz
• Output power "Multifunctional Out 1, 2, 3" (each): 1200VA (W) @ 230V 620VA (W) @ 120V 5.2A
• Output power "Multifunctional Out 1+2+3" (total): 1600VA (W) @ 230V 840VA (W) @ 120V 7A
• Output power "Multifunctional Out 4": 2300VA (W) @ 230V 1200VA (W) @ 120V 10A
• Multifunctional Out 5 output: 12-24V DC 1A max.
• Output current 0-10V outputs: max. 20mA
• Protection class: IP42 / Protection class I
• Repeatability RH/T sensor: ± 0.1% RH / ± 0.2 °C
• Absolute sensor accuracy RH/T: ±2%RH/±0.2°C
• Adjustable range for temperature: 10-50°C
• Permissible ambient temperature: 10-40°C
• Wireless technology: WiFi 2.4 GHz (IEEE 802.11 b/g/n)

Scope of delivery

• GrowBase Pro WiFi controller
• Humidity and temperature sensor
• Three-hole disc for hanging the sensor
• 2 x power cables
• Quick start guide
• Screws, dowels, and drilling template for wall mounting
