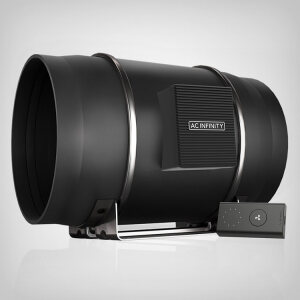

AC Infinity CLOUDLINE PRO S12, Quiet Inline Fan with Speed Controller

Powerful inline fan system with intelligent control

Ventilate large grow tents and indoor cultivation rooms efficiently and quietly: The Infinity CLOUDLINE S12 inline fan system impresses with quiet and energy-efficient operation The speed controller allows you to individually regulate the power in ten stages and thus adapt it to the requirements of your grow. The fan is driven by a high-performance EC motor, which precisely regulates the airflow thanks to its PWM control. This design guarantees quiet operation and prevents motor damage. Thanks to the inline mixed-flow design, the fan can maintain the air flow even at high static pressure. The fan can even be used in areas with limited air flow: The mixed-flow design with stator guide vanes and two hydrodynamic flow circuits ensure efficient operation even then.

Convenient operation thanks to intelligent control

The fan system has an intelligent control with programmable climate and time functions and can be connected to several UIS controllers. This product is part of the UIS™ platform, which allows other devices to be combined to create the ideal environment for your grow. The backup memory ensures smooth resumption of operation even after a power failure: the last speed setting is retained if the power supply to the controller is interrupted once.

The motor can be mounted in any direction and is equipped with double ball bearings. For easy maintenance and cleaning, the housing can be easily removed and with its IP44 certification, the device is protected against dust and moisture. The system is suitable for grow tents from a size of 150 x 150 x 200 cm.

Technical details

• Connection: 300 mm
• Dimensions: 31.0 x 45.0 x 35.6 cm
• Cable length to controller: 3.05 m
• Total air flow: 2725 m3/h
• Operating noise: 62 dBA
• Static air pressure: 818 Pa
• Electrical voltage: 100 - 240 V (50/60 Hz)
• Maximum power: 250 W
• Average power: 139 W
• Current: 1.09 A
• Plug: Euro plug
• Humidity range: 35 - 85%
• Temperature range: 0 - 60 ℃
• Protection class: IP44
• Service life: 67000 hours
