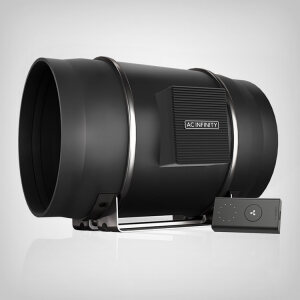

AC Infinity CLOUDLINE PRO S10, Quiet Inline Fan with Speed Controller

Powerful inline fan system with intelligent control

Professional ventilation for larger grow tents and demanding environments: The Infinity CLOUDLINE S8 inline fan system impresses with its quiet and energy-efficient operation. The speed controller allows you to individually regulate the performance in ten stages to suit the requirements of your grow. The fan is run by a powerful EC motor, which precisely regulates the airflow thanks to its PWM control. This design guarantees quiet operation and prevents motor damage. Thanks to the inline mixed-flow design, the fan can maintain the airflow even at high static pressure. The fan can even be used in areas with limited airflow: the mixed-flow design with stator guide vanes and two hydrodynamic flow circuits ensure efficient operation even then.

Convenient operation thanks to intelligent control

The fan system has an intelligent control system with programmable climate and time functions and can be connected to several UIS controllers. This product is part of the UIS™ platform, which allows you to combine additional devices to create the ideal environment for your grow. The backup memory ensures that operation resumes smoothly even after a power failure: the last speed setting is retained if the power supply to the control unit is interrupted.

The motor can be mounted in any direction and is equipped with double ball bearings. The housing can be easily removed for maintenance and cleaning, and its IP44 certification protects the device from dust and moisture. The system is suitable for grow tents measuring 150 x 150 x 200 cm or larger.

Technical Details:

• Connection: 250 mm
• Dimensions: 24.9 x 38.6 x 28.6 cm
• Cable length to controller: 3.05 m
• Total air flow: 2042 m3/h
• Operating noise: 48 dBA
• Static air pressure: 1059 Pa
• Electrical voltage: 100–240 V (50/60 Hz)
• Maximum power: 255 W
• Average power: 136 W
• Current: 1.11 A
• Plug: Euro plug
• Humidity range: 35–85%
• Temperature range: 0–60°C
• Protection class: IP44
• Service life: 67,000 hours
